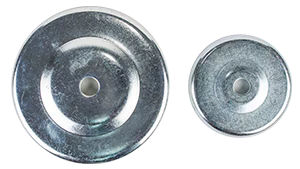

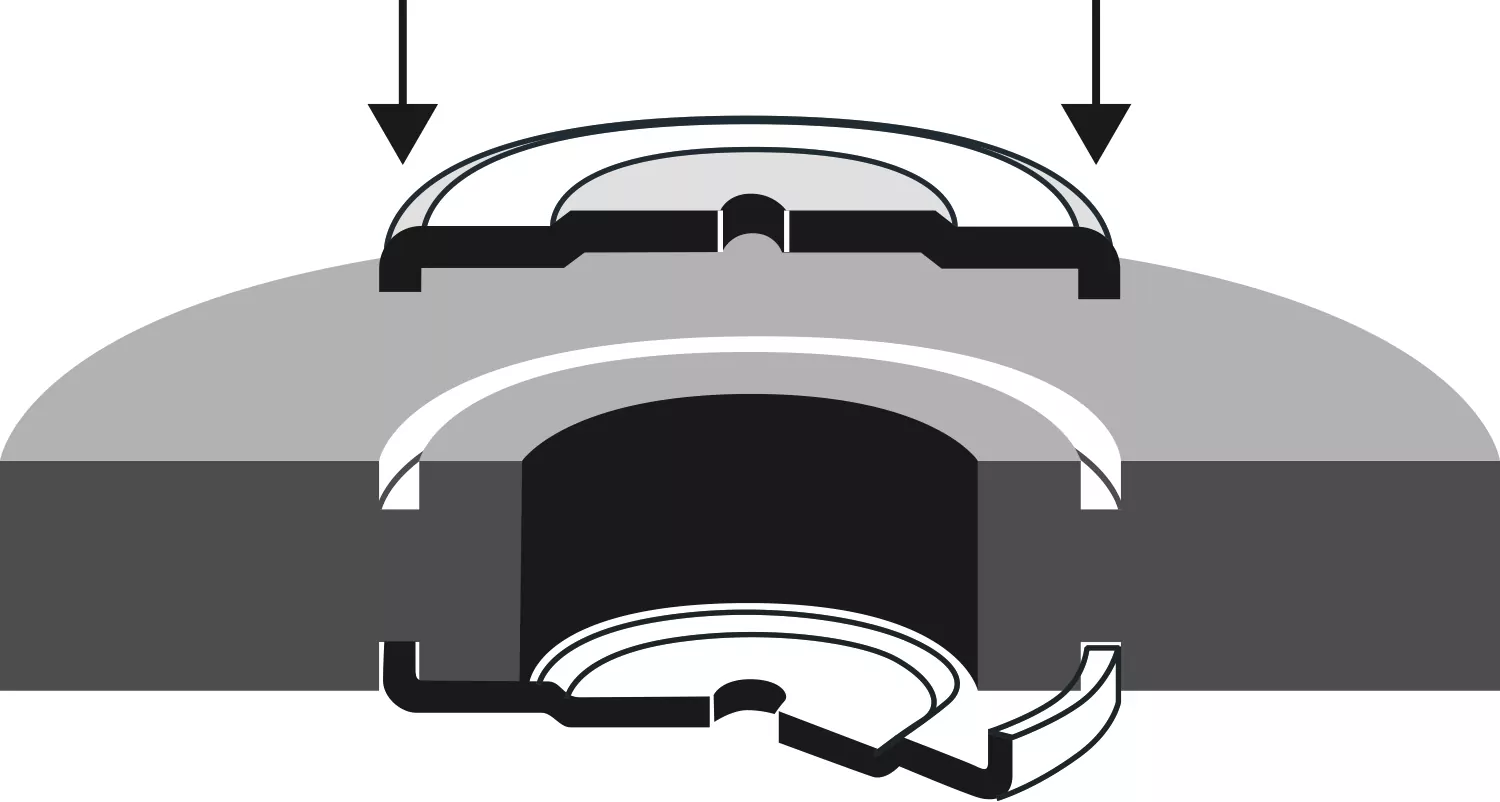

Side Mounting Plates for Unmounted Flap Wheels
To ensure the greatest possible safety, please be sure to use our reusable side mounting plates!
| Ø Disc (mm) | Ø Cover (mm) | Art. No. | Ø Drill hole (smallest) (mm) | Expansion Ø drill hole to (largest) (mm) | PU |
|---|---|---|---|---|---|
| 100-140 | 55 | 340 000 | 10 | 20 | 2 |
| 150-165 | 79 | 340 100 | 12 | 40 | 2 |
| 200-250 | 122 | 340 300 | 14 | 60 | 2 |
| 300 | 156 | 340 500 | 20 | 80 | 2 |
| 350 | 201 | 340 600 | 25 | 120 | 2 |
| 400 | 225 | 340 700 | 25 | 140 | 2 |
