Flap wheels

For polishing smaller parts, within profiles or areas that are difficult to reach.

Combined with a polishing paste, our felt flap wheels ensure uniform and optimum polishing results. Alongside the classic flap design, we also offer a brush style. Depending on the version, they are available in medium and soft to cover a wide application range.

These tools:

Are suitable for processing small and medium-sized components
Are made of soft felt flaps
Ensure lower heat load on the workpiece
Create uniform finishes

Possible processing tasks:

Polishing difficult to reach areas
Polishing on irregular shapes and contours

Materials that can be processed:

Steel and stainless steel (INOX)
NF metals such as copper, aluminium and zinc

Our felt flap polishers are optimized for use on adjustable straight grinders.

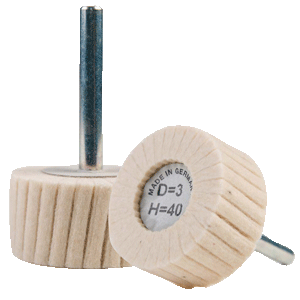

Flap wheels – felt

The flexible flaps of these shank tools adapt to contours and enable a cooler air flow. Their size covers a wide field of application, such as the processing of complex components or areas that are difficult to reach.

Details:

Suitable for: Straight Grinder

Type FF

Dimensions (mm)			Flexibility		RPM		PU
Ø A	B	Ø C	Soft D2/H25	Medium D2/H40	opt.	max.
20	10	3	188 111	188 112	9.500	11.000	10
20	20	3	188 121	188 122	9.500	11.000	10
20	10	6	187 611	187 612	9.500	11.000	10
20	20	6	187 621	187 622	9.500	11.000	10
25	10	3	188 141	188 142	7.600	10.700	10
25	20	3	188 151	188 152	7.600	10.700	10
25	30	3	188 161	188 162	7.600	10.700	10
25	10	6	187 641	187 642	7.600	10.700	10
25	20	6	187 651	187 652	7.600	10.700	10
25	30	6	187 661	187 662	7.600	10.700	10
30	10	3	188 181	188 182	6.300	10.500	10
30	20	3	188 191	188 192	6.300	10.500	10
30	10	6	187 681	187 682	6.300	10.500	10
30	20	6	187 691	187 692	6.300	10.500	10

Dimensions (mm)			Flexibility		Extra Flexibility		RPM		PU
Ø A	B	Ø C	Soft D3/H25	Medium D3/H40	Soft D2/H25	Medium D2/H40	opt.	max.
40	20	6	187 731	187 732	187 736	187 737	4.750	9.000	10
40	30	6	187 741	187 742	187 746	187 747	4.750	9.000	10
50	20	6	187 791	187 792	187 796	187 797	3.800	8.000	10
50	30	6	187 801	187 802	187 806	187 807	3.800	8.000	10
50	40	6	187 811	187 812	187 816	187 817	3.800	8.000	10
60	30	6	187 851	187 852	187 856	187 857	3.150	7.000	10
60	40	6	187 861	187 862	187 866	187 867	3.150	7.000	10

Dimensions (mm)			Flexibility		Extra Flexibility		RPM		PU
Ø A	B	Ø C	Soft D5/H25	Medium D5/H40	Soft D3/H25	Medium D3/H40	opt.	max.
80	50	6	187 951	187 952	187 956	187 957	2.400	6.000	10

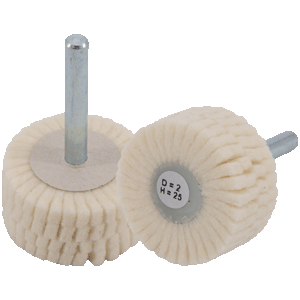

Flap wheels – felt, brush design

Similar to our classic flap wheels on shank, the flaps are slit lengthwise creating a mop style. This ensures extra flexibility and makes the processing of irregular shapes or contours possible.

Details:

Suitable for: Straight Grinder

Type FFB

Dimensions (mm)			Flexibility		RPM		PU
Ø A	B	Ø C	Soft D2/H25	Medium D2/H40	opt.	max.
40	20	6	188 596	188 597	4.750	9.000	10
40	30	6	188 606	188 607	4.750	9.000	10
50	20	6	188 636	188 637	3.800	8.000	10
50	30	6	188 646	188 647	3.800	8.000	10
60	30	6	188 696	188 697	3.150	7 .000	10
60	40	6	188 706	188 707	3.150	7.000	10

Dimensions (mm)			Flexibility		RPM		PU
Ø A	B	Ø C	Soft D3/H25	Medium D3/H40	opt.	max.
80	50	6	188 771	188 772	2.400	6.000	10
