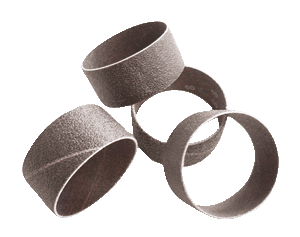

Spiral bands – aluminium oxide
These tools are made of normal corundum and are suitable for a wide range of applications from coarse to fine grinding.
They are available in six diameters from 10 to 45 mm and widths from 20 to 30 mm. You will also find the corresponding expanding drums for our range.
Details:
Type SH
| Dimensions (mm) | Aluminium Oxide | RPM max. | PU | |||
|---|---|---|---|---|---|---|
| Ø A | B | A50 | A80 | A150 | ||
| 10 | 20 | 153 163 | 153 165 | 153 168 | 44.000 | 50 |
| 13 | 25 | 153 303 | 153 305 | 153 308 | 44.000 | 50 |
| 15 | 30 | 153 455 | 153 456 | 153 457 | 36.000 | 50 |
| 22 | 20 | 153 603 | 153 605 | 153 608 | 26.000 | 50 |
| 30 | 30 | 153 783 | 153 785 | 153 788 | 19.100 | 50 |
| 45 | 30 | 154 123 | 154 125 | 154 128 | 12.700 | 50 |
Read more
As well as having a long tool life, these tools are:
- Extremely resilient
- Available in different versions for individual requirements
- Safe to use
- Especially economical thanks to high material removal
Possible processing tasks:
- Grinding and blending
- Deburring and levelling
- Structuring
- Surface and edge processing
Bearbeitbare Werkstoffe:
- Steel and stainless steel (INOX)
- NF metals such as brass, aluminium and bronze
Optimized for use on straight grinders.
