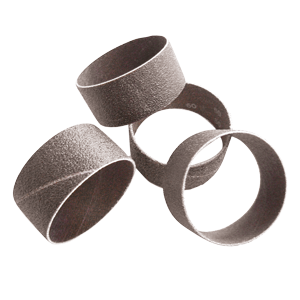

Spiral bands in professional quality

Designed for universal use on almost every metal.

These tools are made of normal corundum and are suitable for a wide range of applications from coarse to fine grinding.

They are available in six diameters from 10 to 45 mm and widths from 20 to 30 mm. You will also find the corresponding expanding drums for our range.

As well as having a long tool life, these tools are:

  • Extremely resilient
  • Available in different versions for individual requirements
  • Safe to use
  • Especially economical thanks to high material removal

Possible processing tasks:

  • Grinding and blending
  • Deburring and levelling
  • Structuring
  • Surface and edge processing

Bearbeitbare Werkstoffe:

  • Steel and stainless steel (INOX)
  • NF metals such as brass, aluminium and bronze

Optimized for use on straight grinders.

Spiral Bands – normal corundum


Suitable for: Straight Grinder

Always insert an expander body and observe the running direction.


Type SH

Dimensions (mm)Aluminium OxideRPM max.PU
Ø ABA50A80A150
1020153 163153 165153 16844.00050
1325153 303153 305153 30844.00050
1530153 455153 456153 45736.00050
2220153 603153 605153 60826.00050
3030153 783153 785153 78819.10050
4530154 123154 125154 12812.70050
