Aluminum Oxide Cross Pads
The X-shape is more flexible and less aggressive than a square pad. Commonly used to plunge into tubes, cylinders and piping. Cross pads can quickly debur, clean and finish ID surfaces. Threaded eyelet holds the material together, and allows quick changeovers.
Details:
| Dia. | Width | Layers | Eyelet | A60 | A80 | A120 | Max. RPM | PKG |
|---|---|---|---|---|---|---|---|---|
| 1-1/2″ | 1/2″ | 8-ply | 8-32 | 900 320 | 900 321 | 900 322 | 23.000 | 100 |
| 2″ | 1/2″ | 8-ply | 8-32 | 900 330 | 900 331 | 900 332 | 23.000 | 100 |
| 2″ | 3/4″ | 8-ply | 8-32 | 900 340 | 900 341 | 900 342 | 23.000 | 100 |
| 3″ | 1″ | 8-ply | 1/4-20 | 900 370 | 900 371 | 900 372 | 14.000 | 100 |
| 4-1/2″ | 1-1/2″ | 8-ply | 1/4-20 | 900 390 | 900 391 | 900 392 | 12.000 | 100 |
| 6″ | 1-1/2″ | 8-ply | 1/4-20 | 900 410 | 900 411 | 900 412 | 7.500 | 100 |
Threaded Mandrels for Square and Cross Pads
For quick mounting of products with 8-32 or 1/4-20 eyelet onto a 1/4” shank.
Details:
| Thread | Shank | Length | Part no. | PKG |
|---|---|---|---|---|
| 8-32 | 1/4″ | 3″ | 900 991 | 1 |
| 8-32 | 1/4″ | 4″ | 900 987 | 1 |
| 8-32 | 1/4″ | 6″ | 900 988 | 1 |
| 8-32 | 1/4″ | 8″ | 900 989 | 1 |
| 1/4-20 | 1/4″ | 3″ | 900 992 | 1 |
| 1/4-20 | 1/4″ | 4″ | 900 993 | 1 |
| 1/4-20 | 1/4″ | 6″ | 900 994 | 1 |
| 1/4-20 | 1/4″ | 8″ | 900 995 | 1 |
Square Pads and Cross Pads Continued
-

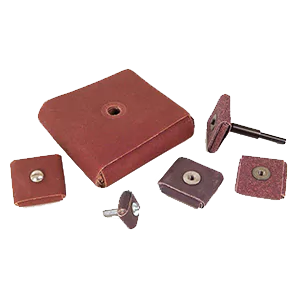

Aluminum Oxide Square Pads
Made from layers of folded abrasive, the square shape creates an aggressive impacting effect as each corner strikes the workpiece
