Unmounted Interleaf Flap Wheels
Designed to fit common bench grinders and allow operators to debur, clean and create a brushed surface finish in one step. Custom sizes available through 8” diameter and 4” face width.
Details:
| Dia. | Width | Shank | A80/Medium | A120/Medium | A150/Fine | A180/Fine | A240/Very Fine | Opt. RPM | Max. RPM | PKG |
|---|---|---|---|---|---|---|---|---|---|---|
| 6″ | 1″ | 1″ | 325 572 | 325 573 | 325 574 | 325 575 | 325 576 | 2.000 | 3.200 | 5 |
| 6″ | 2″ | 1″ | 325 529 | 325 593 | 325 594 | 325 595 | 325 596 | 2.000 | 3.200 | 2 |
| 8″ | 1″ | 1″ | 325 602 | 325 603 | 325 604 | 325 605 | 325 606 | 1.500 | 2.400 | 5 |
| 8″ | 2″ | 1″ | 325 622 | 325 623 | 325 624 | 325 625 | 325 626 | 1.500 | 2.400 | 2 |

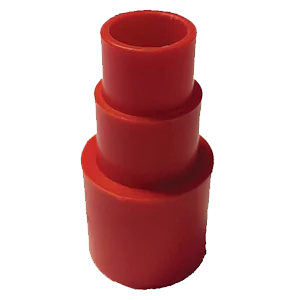

Nested bushings
1″ wide telescopic bushings adapt 1” arbor to multiple spindle sizes (3/4″, 5/8″ and 1/2″).
| Telescopic Bushing | PKG |
|---|---|
| 326 980 | 1 |
