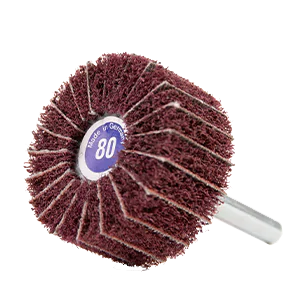

Interleaf Flap Wheels – Shank Mounted
Offered in various combinations of aluminum oxide coated abrasive and nonwoven materials for creating brushed surface finishes. Our standard program is made in a 1:1 configuration (one coated flap to each nonwoven flap). Customers can special order wheels made with two (2:1) or three (3:1) coated flaps for extended life and enhanced graining capabilities.
Details:
| Dia. | Width | Shank | A80/Medium | A120/Medium | A150/Fine | A180/Fine | A240/Very Fine | Opt. RPM | Max. RPM | PKG |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/4″ | 3/4″ | 1/4″ | 117 065 | 117 067 | 117 068 | 117 069 | 117 070 | 10.500 | 15.000 | 10 |
| 1″ | 1″ | 1/4″ | 117 185 | 117 187 | 117 188 | 117 189 | 117 190 | 10.500 | 15.000 | 10 |
| 2″ | 1″ | 1/4″ | 117 525 | 117 527 | 117 528 | 117 529 | 117 530 | 9.600 | 13.700 | 10 |
| 2″ | 2″ | 1/4″ | 117 585 | 117 587 | 117 588 | 117 589 | 117 590 | 9.600 | 13.700 | 10 |
| 3″ | 1″ | 1/4″ | 117 805 | 117 807 | 117 808 | 117 809 | 117 810 | 6.000 | 8.600 | 10 |
| 3″ | 2″ | 1/4″ | 117 865 | 117 867 | 117 868 | 117 869 | 117 870 | 6.000 | 8.600 | 10 |
